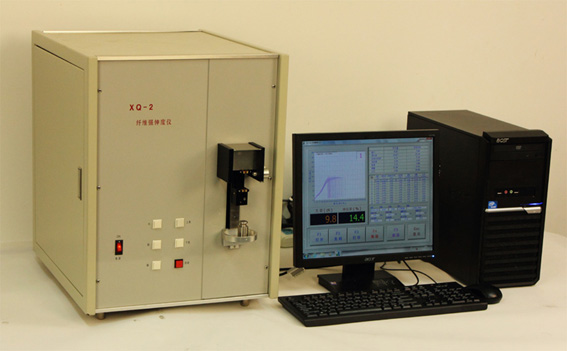

XQ-2 Fiber Tensile Tester

   Introduction

        The XQ-2 Fiber Tensile Tester is a function-extended type of the XQ-1A Fiber Tensile Tester. Apart from the normal tensile test, it can implement a series of fiber tensile tests, such as the elasticity at specified elongation, circulating elasticity at specified elongation, elasticity at specified load, circulating elasticity at specified load, relaxation, and creep tests etc., This apparatus can be applied to the tensile test of elastic fibers.

   Technical Data

(a) Force measurement range:   0～100 cN

(b) Force error:   ≤±1%

(c) Force precision:   0.01 cN , 0.1cN

(d) Extension measurement range:   100 mm

(e) Extension error:    ≤0.05 mm

(f) Elongation precision:   0.1%

(g) Test speed:     1～100, and 2～200 mm/min

(h) Lower clamp moving range:  100 mm

(I) Power:      220V～±10%

(J) Weight:     45kg

     (k) Size:         540×434×560 mm
