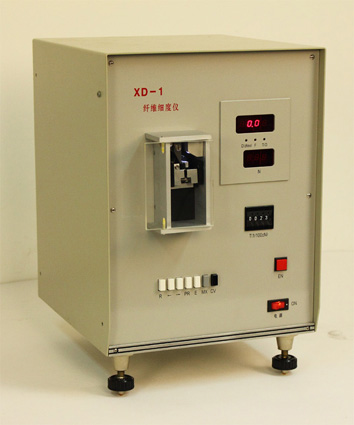

XD-1 Vibration Fiber Fineness Tester

   Introduction

      The XD-1 Vibration Fiber Fineness Tester works based on the string    vibration principle. First, it measures the natural vibration frequency of the fiber with known vibration fiber length and tensile force, then automatically calculates the linear density of the single fiber. The fineness measurement range is 0.8-40dtex.

   Technical Data

(a) Fineness measurement range: 0.8～40 dtex;

(b) Fineness error:  ≤±2%;

(c) Vibrating fiber length:  20mm;

(d) Length error:  ≤±1%;

(e) pretension clamp precision:  ≤±0.5%;

(f) Frequency error:  ≤±0.5%;

(g) Power:  220V±10%;

(h) Weight:  about 10 kg;

(i) Size:  393×300×320 (mm).

Method of Operation
